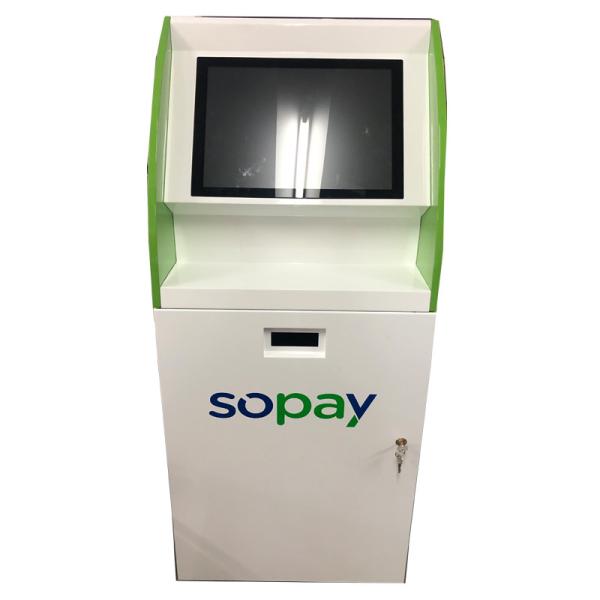

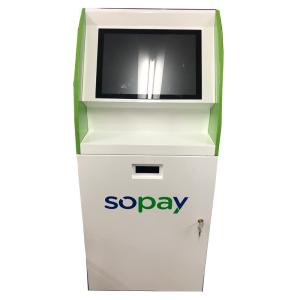

OEM Bitcoin Transaction ATM Terminal Kiosk With Capacitive Touch Screen

Brand Name : Guanpinxin

Model Number : GPX-PK

Certification : CE CCC ROHS

Place of Origin : China, Guangdong

MOQ : 1

Price : $1400-3000

Payment Terms : L/C, T/T, Western Union, MoneyGram, Paypal

Supply Ability : 5000 units per month

Delivery Time : 30 working days

Packaging Details : Packed in plywood

Warranty : 1 Year

Material : Cold Rolled Steel

Touch screen type : Capacitive Screen

Main components : Motherboard+LED+touchscreen+cash Dispener

Application : Indoor

MOQ : 1 unit

OS : Windows or Android

Bitcoin software : Not provided, hardware only

Contact Now

OEM/ODM Bitcoin ATM terminal kiosk bitcoin transaction kiosk for whole sale

Product Description
Component name
Specification

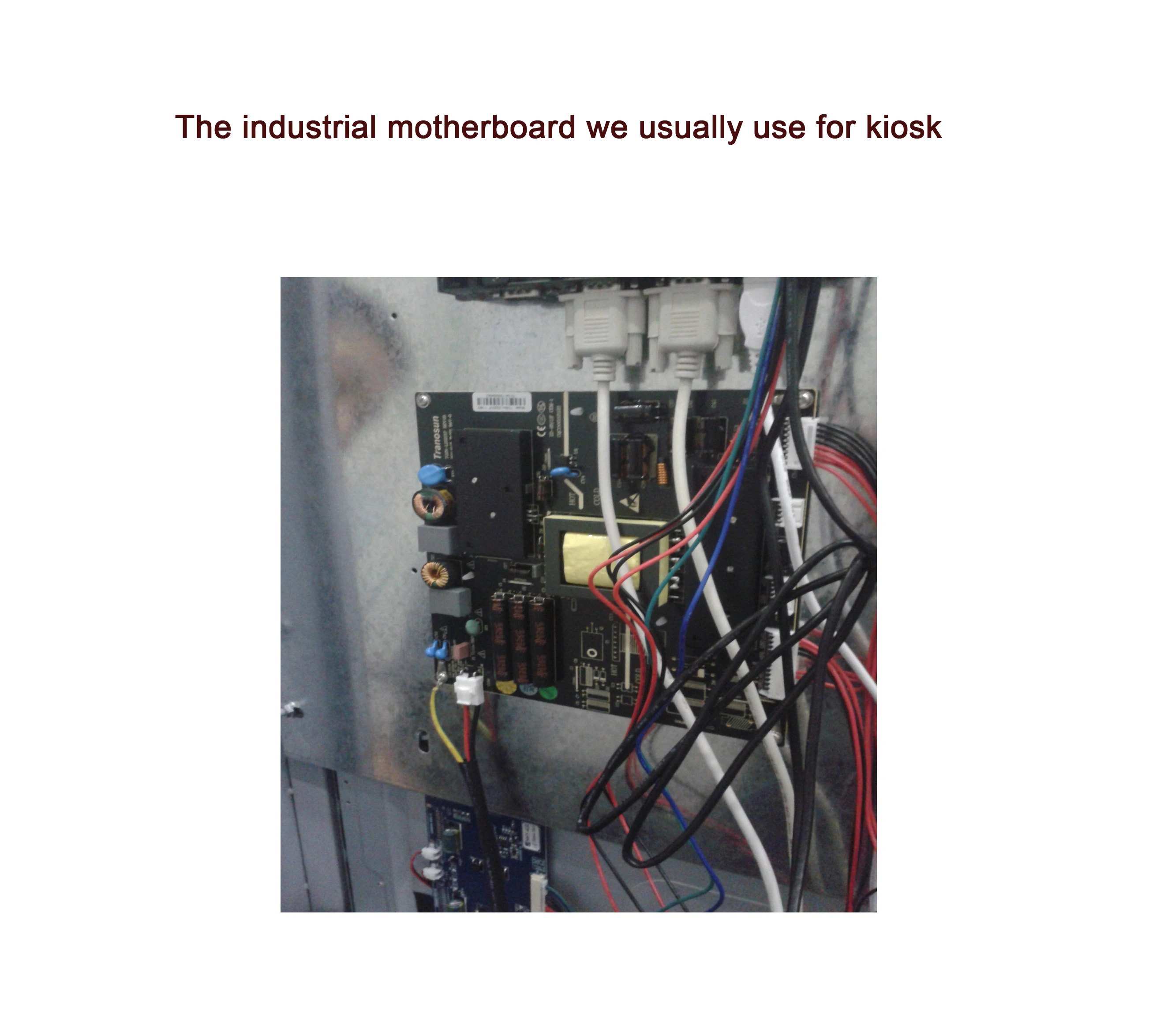

Main Processor Module
Windows or Android motherboard.
For Windows board:
*CPU:1900K-R2
*RAM: 4G
*SSD: 64G
*WIFI: 802.11b/g/n WIFI/RJ45 (3G/4G )
*Ethernet: RJ45 10/100m
*Audio: Realtek HD ALC662
*Video: Intel HD Video
*Support Video format: mkv*wmv*mpg*mpeg*dat*avi*mov*mp4*rm
*Support Video resolution: 1920*1080
*Support Audio format: MP3*WMA*WAV*FLAC*AAC*AC3
*Support Image format: JPGE*BMP*GIF*PNG
*The interface: RJ45 1
*Speaker: 2*10W
*Power supply: AC100~250V 50 /60 HZ
For Android board:
*Motherboard: RK3288
*RAM: 2G
*ROM: 8G
*Android O/S: 6.0.1
*Serial Interface: 3 Serial ports
*Network card: 1 interface,support 1080P output
*WIFI: 802.11b/g/n
*Ethernet: RJ45
*Audio: Realtek HD ALC662
*Video: Intel HD Video
*The interface: RJ45 1
*Speaker: 2*10W
*Power supply: AC100~250V 50 /60 HZ
*Ports: VGA x1, USB x2, RJ45 x1
Display Module
*Size: 10.1"~22", can has two display, one for operation menu, the other for advertisement
*Backlight Type: LCD or LED
*Screen Type: LED TFT A Glass LVDS 120Hz Low power and energy conservation
*Resolution: 1920*1080
*Proportion: 16:9
*Contrast: 4000.:1
*Visual Angle: 178°(H) / 178°(V)
*Response Time: 5 ms
*Life Time: 50000 Hours
*Brightness: 450cd/m2
*Working Environment Temperature:-20~60℃ Humidity:0~85%RH
Touch Screen
*Touch Type: Infrared 10 points touch/Capacitive 10 points touch
*Input Method: Finger, touch pen or any opaque object
*Reaction Speed: 10ms~26ms
*Resolution: 4096×4096
*touch identification area: Φ5mm
*Writing screen media: 4mm tempered high transparent anti-glare glass
*Hardness of the Temper glass: Mohs 7
*Touch Durability: ≥60 million
*Communication mode: USB

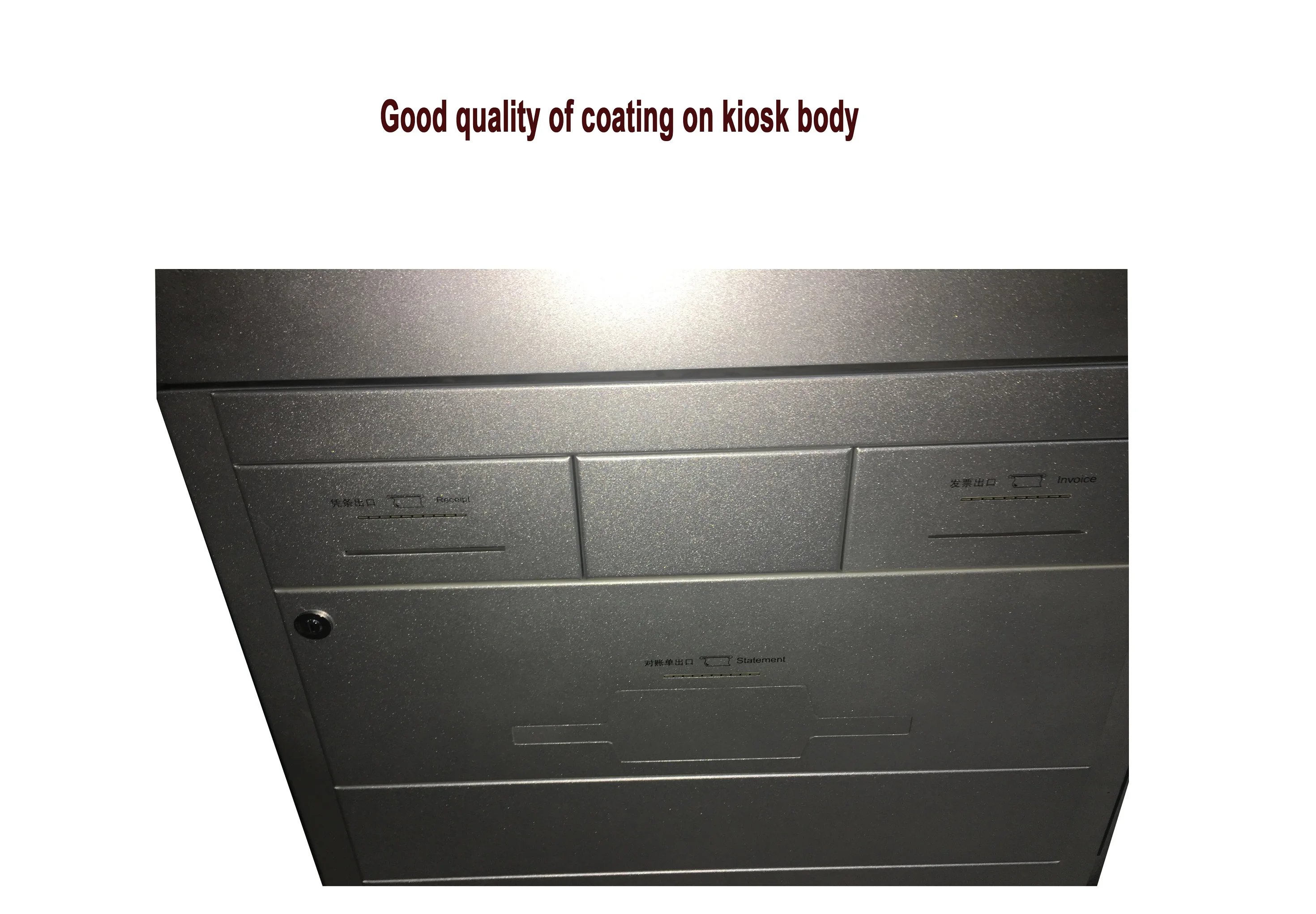

Kiosk Body Material
Cold roll steel, for indoor use, thickness is 1.1~1.5mm
Power Supply
AC 110–240, 50-60Hz
Maximum power consumption
<=280W
Standby power consumption
<5W
Operating temperature
0~50℃
Humidity
0%~80%
Color and Logo
Can be customized according to your needs
Optional Items Available
Cash acceptor, coin acceptor, coin dispenser, card reader, EMV card reader, card swipe, metal keypad, camera, fingerprint reader,
bar/QR code reader, IRIS scanner, or others. When you send us your inquiries, please choose one or several items from the above
list according to your needs
Details Images
OEM Bitcoin Transaction ATM Terminal Kiosk With Capacitive Touch Screen
OEM Bitcoin Transaction ATM Terminal Kiosk With Capacitive Touch Screen
OEM Bitcoin Transaction ATM Terminal Kiosk With Capacitive Touch Screen
Product Usage
OEM Bitcoin Transaction ATM Terminal Kiosk With Capacitive Touch Screen

    • Product usage introduction

Mainly used in bank, hospital, government office, printing shop, insurance company etc.
Packing&Shipping
Wrapped with bubble and packed in plywood, or packed in carton box
OEM Bitcoin Transaction ATM Terminal Kiosk With Capacitive Touch Screen
OEM Bitcoin Transaction ATM Terminal Kiosk With Capacitive Touch Screen
OEM Bitcoin Transaction ATM Terminal Kiosk With Capacitive Touch Screen
OEM Bitcoin Transaction ATM Terminal Kiosk With Capacitive Touch Screen
Company Introduction
Guangzhou Guanpinxin Electronic Technology is a professional kiosk terminal manufacturer, which is established in 2011. Located in Guangzhou, one of the biggest trade centers, has the advantage of convenient access.
The main products includes advertising player, payment kiosk, charging kiosk, interactive board and table etc. We also have some certifications like CE, CCC, ROHS, FCC etc. What's more, we provide 1-2 years warranty for all products, which makes our products more reliable and safe to use. We pursue high quality
Our vision is to make a leading enterprise in the industry of self service terminal, and provide satisfying solution and service for you
