| Component name | |
| | Windows or Android motherboard.
For Windows board:
*CPU:1900K-R2
*RAM: 4G
*SSD: 64G
*WIFI: 802.11b/g/n WIFI/RJ45 (3G/4G )
*Ethernet: RJ45 10/100m
*Audio: Realtek HD ALC662
* Video: Intel HD Video
* Support Video format: mkv*wmv*mpg*mpeg*dat*avi*mov*mp4*rm
* Support Video resolution: 1920*1080
* Support Audio format: MP3*WMA*WAV*FLAC*AAC*AC3
* Support Image format: JPGE*BMP*GIF*PNG
* The interface: RJ45 1
* Speaker: 2*10W
* Power supply: AC100~250V 50 /60 HZ
For Android board:
* Motherboard: RK3288
*RAM: 2G
*ROM: 8G
* Android O/S: 6.0.1
* Serial Interface: 3 Serial ports
* Network card: 1 interface,support 1080P output
* WIFI: 802.11b/g/n
* Ethernet: RJ45
* Audio: Realtek HD ALC662
* Video: Intel HD Video
* The interface: RJ45 1
* Speaker: 2*10W
* Power supply: AC100~250V 50 /60 HZ
* Ports: VGA x1, USB x2, RJ45 x1 |

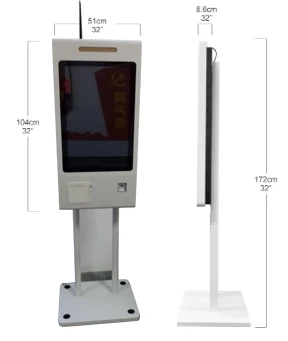

| | *Size: 27"~49"
*Backlight Type: LCD or LED
*Screen Type: LED TFT A Glass LVDS 120Hz Low power and energy conservation
*Resolution: 1920*1080
*Proportion: 16:9
*Contrast: 4000.:1
*Visual Angle: 178°(H) / 178°(V)
*Response Time: 5 ms
*Life Time: 50000 Hours
*Brightness: 450cd/m2
*Working Environment Temperature:-20~60℃ Humidity:0~85%RH |
| Touch Screen | *Touch Type: Infrared 10 points touch/Capacitive 10 points touch
*Input Method: Finger, touch pen or any opaque object
*Reaction Speed: 10ms~26ms
*Resolution: 4096×4096
*touch identification area: Φ5mm
*Writing screen media: 4mm tempered high transparent anti-glare glass
*Hardness of the Temper glass: Mohs 7
*Touch Durability: ≥60 million
*Communication mode: USB |
| Kiosk Body Material | Cold roll steel, for indoor use, thickness is 1.1~1.5mm |

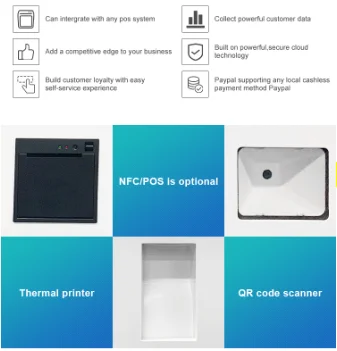

| | *80mm thermal paper width auto cutter (black mark sensor in option)
*Interface: Parallel Interface or USB or RS232
*Speed:150mm/sec
*203dpi best printing quality
*Highly reliable cutter: > 1.000.000 cuts
*MTBF for printing head> 100KM paper |
| | *Decode Capability:Reads standard 1D, PDF, 2D, Postal and OCR symbologies.
Note: Decode capabilities dependent on kit configuration
*Host System Interfaces:USB, RS232, Keyboard Wedge
*Scan Pattern:Area Image (838 x 640 pixel array) |
| | *Motorized card reader. ;Electric protection valve;
*Takes card into reader, magcard/IC card reading - writing
*Eject the card when abnormal and pwr-failure
*EMV L1 certified |
| Power Supply | AC 110–240, 50-60Hz |
| Operating temperature | 0~50℃ |
| Humidity | 0%~80% |
| Color and Logo | Can be customized according to your needs |
| | Can be used for online payment, booking, cash deposit, cash withdrawl, information inquiries, enrollment, document printing,
ticket vending etc. Depends on your specific requirement. When you send us your inquiry, please tell us your wanted usage for the
payment kiosks |
| | Thermal printer, cash acceptor, coin acceptor, cash dispener, coin dispenser, card dispenser, card reader, EMV card reader, card
swipe, metal keypad, camera, fingerprint reader, bar/QR code reader, IRIS scanner, PDF scanner, A4 printer or otherss. When you
send us your inquiries, please choose one or several items from the above list according to your needs |
