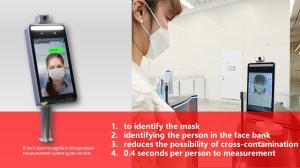

Fast Security Face Recognition Temperature Measurement System
Description:
Considering that certain specific situations (such as enterprise parks, schools, etc.) have been installed with channel gates or access control, the face temperature measurement terminal can provide a device interface to link access control and gates for a series of in-and-out privilege correlations such as "swipe face to open the gate" and "swipe face plus temperature measurement to open the gate".
Through the image fusion technology, the visible light images and infrared images will be accurately matched, and the recognition algorithm is optimized for the mask wearing state, which can be intelligently used to identify the mask. Detects the temperature of the active area. Automatically alerts when a person's body temperature exceeds 37.2 degrees Celsius and assists in identifying the person if he or she is in the face bank. Name and record. Greatly improves the efficiency of personnel temperature screening and reduces the possibility of cross-contamination. It is a combination of visible light band, infrared band, temperature measurement function, mask detection function, face recognition function in one high-end information terminals.
In the office, touching a traditional fingerprint punch card machine should be avoided, which reduces the possibility of cross-contamination, while facial recognition temperature measurement of the Efficiency can reach 0.4 seconds per person.
Each person's face swipe record and body temperature value will be retained and stored in the machine, and the data can also be exported for easy implementation. Export and management. Of course, you can also upload data to a cloud server.
Product Features
>The high-performance intelligent processor and deep learning-based face recognition algorithm have greatly improved the face capture rate.
>Support real-time temperature detection and high temperature alarm.
> Supports face optimization, face enhancement and face exposure, improving imaging quality.
> Supports anti-counterfeiting in vivo, based on facial biometric recognition, which cannot be replaced and copied, eliminating counterfeiting operations.
> Supports multi-face recognition, multi-ethnic recognition, the largest face recognition mode, and the accuracy rate of face recognition is at the forefront of the industry.
> Support multiple recognition methods such as swiping and swiping, swiping or swiping, face only, swipe only, etc., to meet various needs.
> Support secondary development: open interface for face recognition algorithm manufacturers and software vendors to add value to applications.
Specifications:
| Operating system | Android 8.1 |
| Camera | Dual 200W pixels, dual cameras for live detection, anti-glare |
| LED light | white/red/green |
| Display | 7-inch IPS, resolution 1280*800 |
| RAM | DDR 2G |
| ROM | EMMC 8G |
| WIFI/Bluetooth | standard |
| 4G | option |
| Speaker | support TTS multi-national voice broadcast |
| LAN | 10/100/1000MBPS |
| Power adapter | 12V/2A |
| Wiegand | supports 26/34 output/input |
| Authentication method | face recognition plus IC card/face recognition or IC card |
| Storage capacity | 20,000 face database, 1 million records |
| External interface | RJ45, RS232, USB2.0, Wiegand, relay, reset button |
| Installation method | Wall bracket, vertical bracket, gate |
| Measurement | 0.3 degree |
| Best distance | 50CM |
| Use environment | -20 degrees -65 degrees |
| Measuring temperature range | -40 degrees -85 degrees |
| Temperature measurement mode 1 | A: First register the face, verify the successful display of body temperature, 5 alarms exceeding the temperature standard, used for fixed personnel places. |
| Temperature measurement mode 2 | B: Faces are not registered. Faces are captured and only body temperature is monitored and displayed. Alarms are exceeded. It is used in places where there are no fixed personnel. |
Application:
railway stations, bus stations, subway stations, airports, government halls, etc.
Competitive Advantage:
Based on many years of experience in the security industry and innovations inthermal imaging temperature measurement technology, the company has built a modern human body temperature nformation system based on modern information technology to support network interconnection and interoperability, information resource sharing, and complete application functions. Combined with the current biometrics technology,thermal imaging temperature measurement technology, video intelligent analysis and other technical means, around "high precision, high efficiency, low cost, flexible deployment, safety and reliability", it will achieve "effective prevention, timely control and elimination" The grand construction goal of "public health emergencies and its harm".
